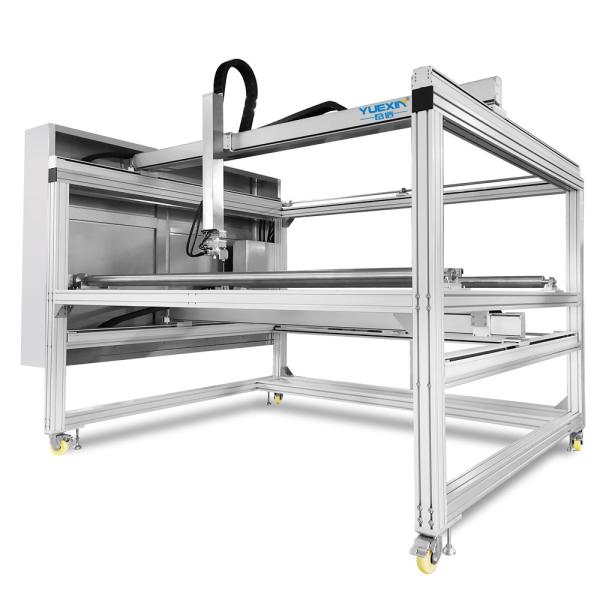

Automatic Rain Test Equipment for IPX9K, Wide Spray Range Waterprooof Tester
Generl specifications:
| Outer dimension | L1600-W1600-H2150/
L1000-W800-H1350 |
| Outer material | Steel plate |
| Power supply | 380V/50HZ |
| Power | 18.0kW |
Product Introduction:
The IPX9 testing chamber, equipped for high-pressure spray evaluations, meticulously examines the waterproof capabilities of products under extreme heat and pressure scenarios. By simulating the rigorous steam cleaning cycle, it offers a comprehensive assessment of the products' resilience and longevity amidst challenging environmental factors.
- The spray distance can be adjusted manually to meet the standard (125±25mm).
- The outer layer of the water tank is pasted with thermal insulation cotton to reduce heat dissipation and ensure a constant water temperature.
- The sample power socket (220V, 10A) is mounted on the right wall of the inner box, which is convenient for the user to do the live test of the sample; and after the sample is powered on, the turntable rotation will be automatically adjusted to forward and reverse rotation to prevent winding5.
- The equipment adopts high-quality high-temperature and high-pressure water pumps to make the test process more stable.
- Controller: 7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages6.
- Universal casters are mounted on the bottom, which has good load-bearing and easy to move and fix the equipment.
- Protection measures: short circuit protection, water shortage alert and door open alert7.
Technical data:
| Item | Specification |
| Spray distance | 125±25mm |
| Number of nozzles | 2 |
| Nozzle angle | 0°,30°,60°,90° |
| Water flow | 14-16L/min |
| Flow control | Automatic adjustment |
| Storage tank temperature | 80±5℃ |
| Spray pressure | 8000-10000Kpa |
| Water jet impact | 0.9-1.2N |
| Test time | 120 seconds, 30 seconds per position |
| Power supply | 380V/50HZ |
| Power | 18.0kW |
Remark:
1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.
2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.
3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.
4 Standard load-bearing upper limit of turntable is 30kg,but also can be customized per requirements.
5 Please inform in advance if the voltage(220V) does not match the actual needs so that we can provide customized solutions for you.
6 At present, only Chinese and English interfaces are supported; if other languages are introduced, the software can be updated remotely.
7 Door open alert: when the door is open, the test cannot be conducted to protect personnel from being drenched in water.
8 The photos may not match the actual ones, and are for user reference only.
Product detail picture:
circuit board
